CG5 Bookshelf Speaker
A speaker tuned with Compression Guide becomes transparent like a pane of glass. Sound channels through it unencumbered by the impurities of the speaker itself. The process liberates sound from the boundaries of the speaker, allowing it to spread freely into open space. A boundless sound atmosphere is unveiled, where instruments, vocalists, and sound effects decorate the room around you. Master craftsmanship and premium components provide crystal-clear resolution and brilliant dynamics. Compression Guide tuning brings it all to life.
The Compression Guide 5 is the latest breakthrough in our award winning lineage of speakers. It is artistry you experience.
CG5 Bookshelf Speaker
SUPERIOR BUILD FROM TOP TO BOTTOM
Compact bookshelf and “LCR” models, available for flexible multi-channel options.
*NEW* Scratch resistant matte finish blends into any environment
Patented Compression Guide tuning for extended bass response
Improved efficiency over original gloss models

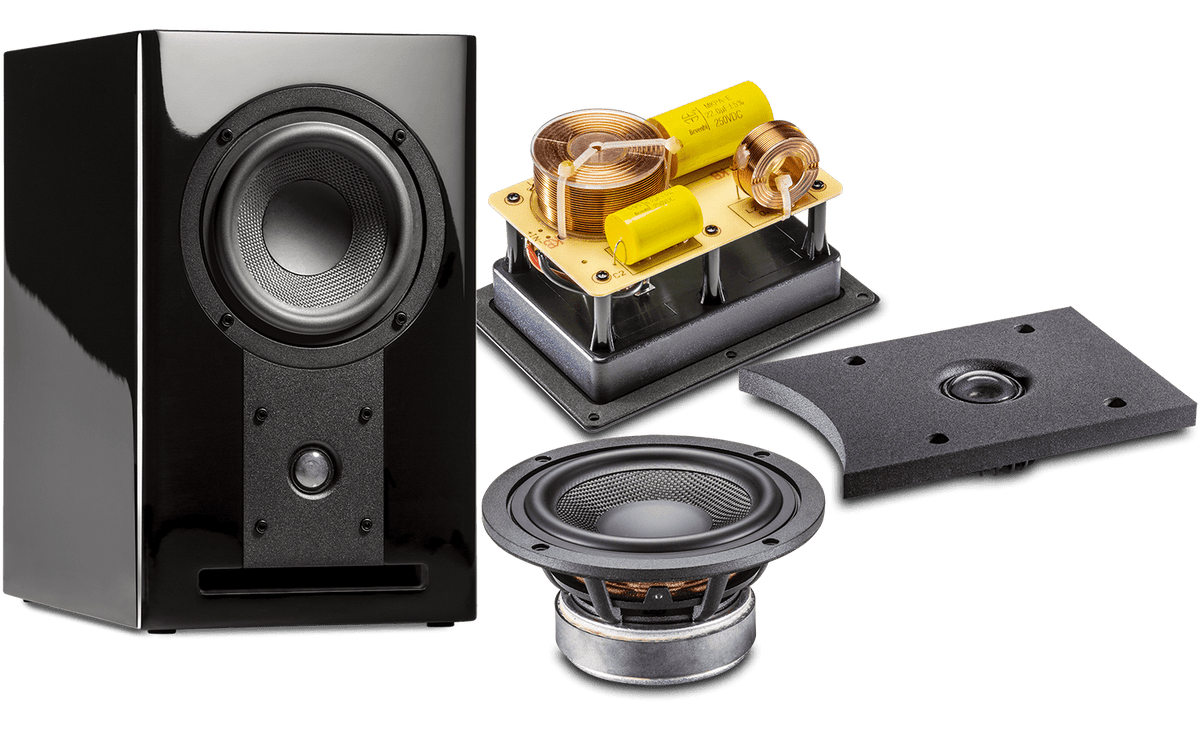

Audiophile grade crossover components
Mineral-filled woven aramid fiber cones
Recommended for use with amplifiers rated from 40W to 150W per channel
BETTER DESIGN & FINISHINGS
COMPRESSION GUIDE TECHNOLOGY
THE ACE UP OUR SLEEVE
Compression Guide technology is the difference between RSL speakers and all other speakers. It's the secret behind our award-winning sound. It's why RSL speakers sound so clear and incredibly realistic.
STANDARD SPEAKERS & SUBWOOFERS
They
Work?
Ours
Work?
RSL SPEAKERS & SPEEDWOOFERS
SPECIFICATIONS
- Woofer: 5.25” cast frame, aramid-fiber cone with Ferrite Magnet
- Tweeter: 1” translucent silk dome, neodymium rare earth magnet
- Frequency Response: 54-35,000 Hz ± 3dB
- Speaker Impeadance: 4 ohms
- Recommended Impedance setting for amplifiers: 6 or 8 ohms (whichever is higher)
- Sensitivity: 86 dB SPL @ 2.83 V, 1 meter distance
- Recommended Power: 25-150 watts
- Crossover Frequency: 2,500 Hz
- Crossover Slope: 12 dB/octave
- Crossover Parts: Air core coils, polypropylene capacitors, gold-plated binding posts
- Tuning Method: Compression Guide™
- Weight: 16 lbs.
- Dimensions: H: 12 5/8” W: 7 5/8” D: 11 1/2″ (without grille 10 3/4”)
